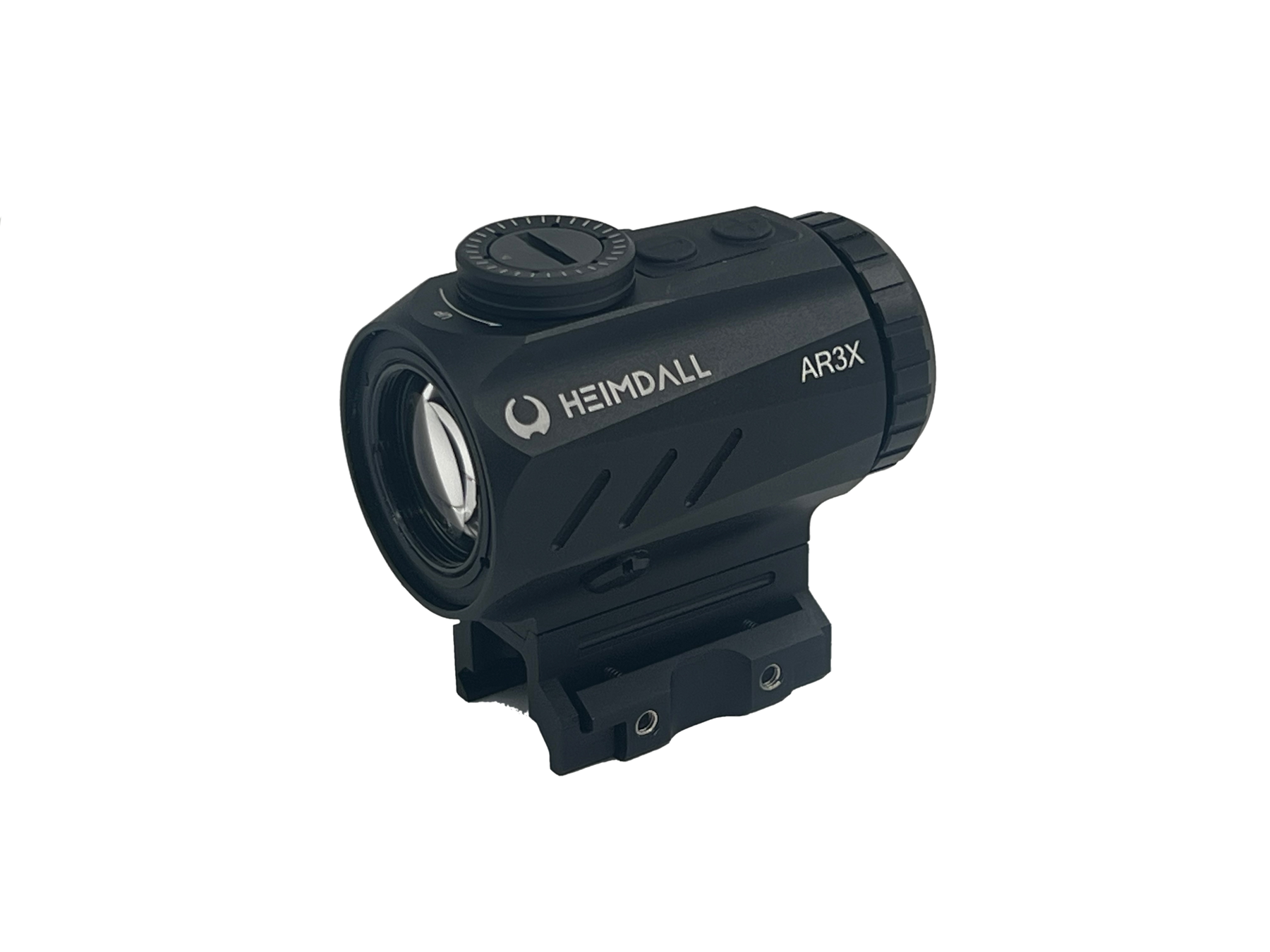

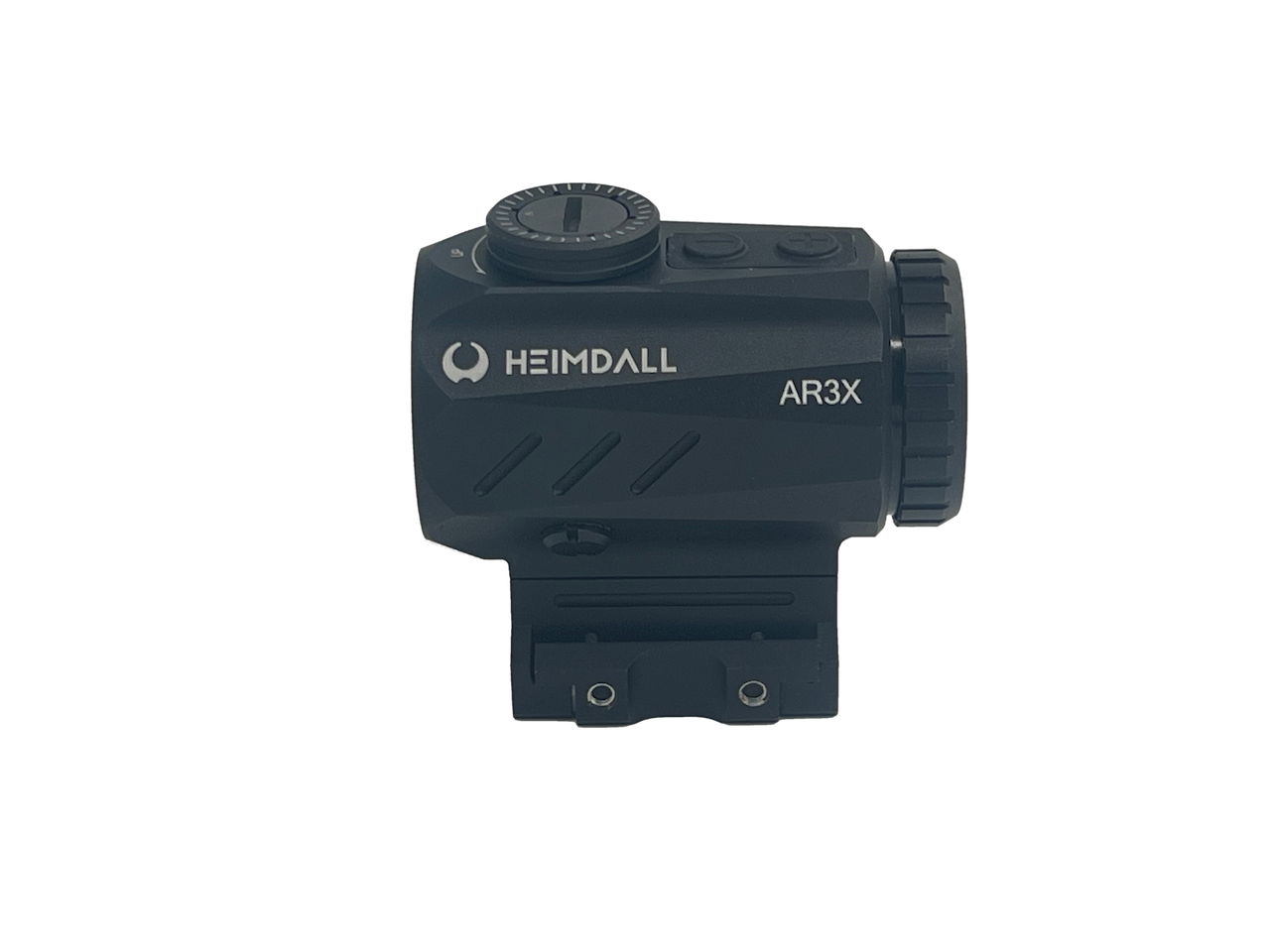

Compact and robust 3X illuminated dot sight
The Heimdall AR3X is a compact 3x magnifying prismatic aiming device. With high quality optics and advanced lens coatings in a compact design and low weight. The focus is on durability and excellent handling for precision and speed. This makes it the ideal choice for AR platforms and other applications.
✓ Prismatic aiming device with 3x magnification
✓ Compact and lightweight at only 253 g
✓ UHP LED illumination
✓ Picatinny mount included
A robust and reliable companion for every application
With the purchase of a Heimdall AR3X device, you are choosing outstanding performance. However, should you ever need help, Heimdall's technical service will provide you with fast, reliable and uncomplicated support.
Technical data:
| Model | AR3X |
| interface | Picatinny / Aimpoint |
| Magnification | 3x |

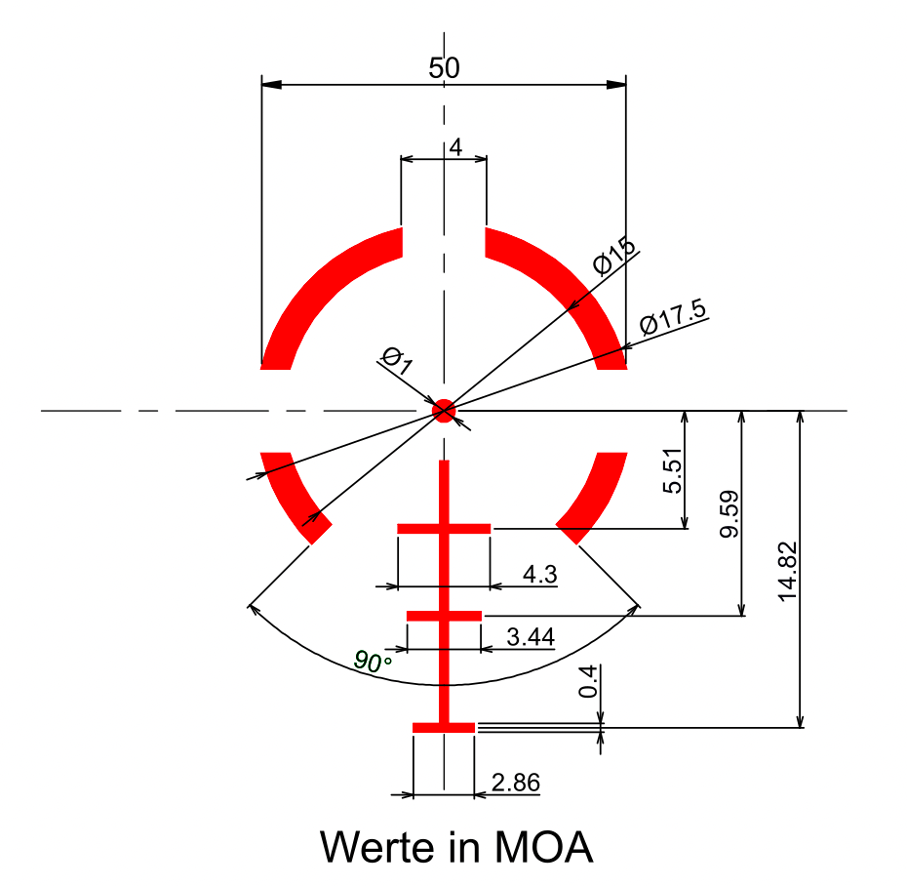

| Illuminated dot / reticle | Tactical |
| Motion sensor | no |
| illumination | UHP LED |
| Lens | 24 mm |
| Interpupillary distance | 70 mm |
| Exit pupil | 8 mm |
| Field of view | 7,3 ° / 12,8 m |
| Parallax | <= 1 MOA |
| Optical axis height | 38 mm |
| Adjustment value | 0.25 MOA |
| Adjustment range height | 100 MOA |
| Side adjustment range | 100 MOA |
| battery | CR2032 |
| Battery life | 1000 h |
| Illumination control | 8 day / 2 night vision |
| Housing material | CNC aluminum |
| Surface finish | Anodized |
| Dimensions (LxWxH) | 77 X 44 X 66 mm |
| weight | 253 g |
| Operating temperature | -20 to +50 °C |
| Recoil resistance | 1200 G |
| Watertightness | IP 67 |
Scope of delivery
- Heimdall AR3X
- Setting tool
- Battery CR2032
- Optics cleaning cloth
