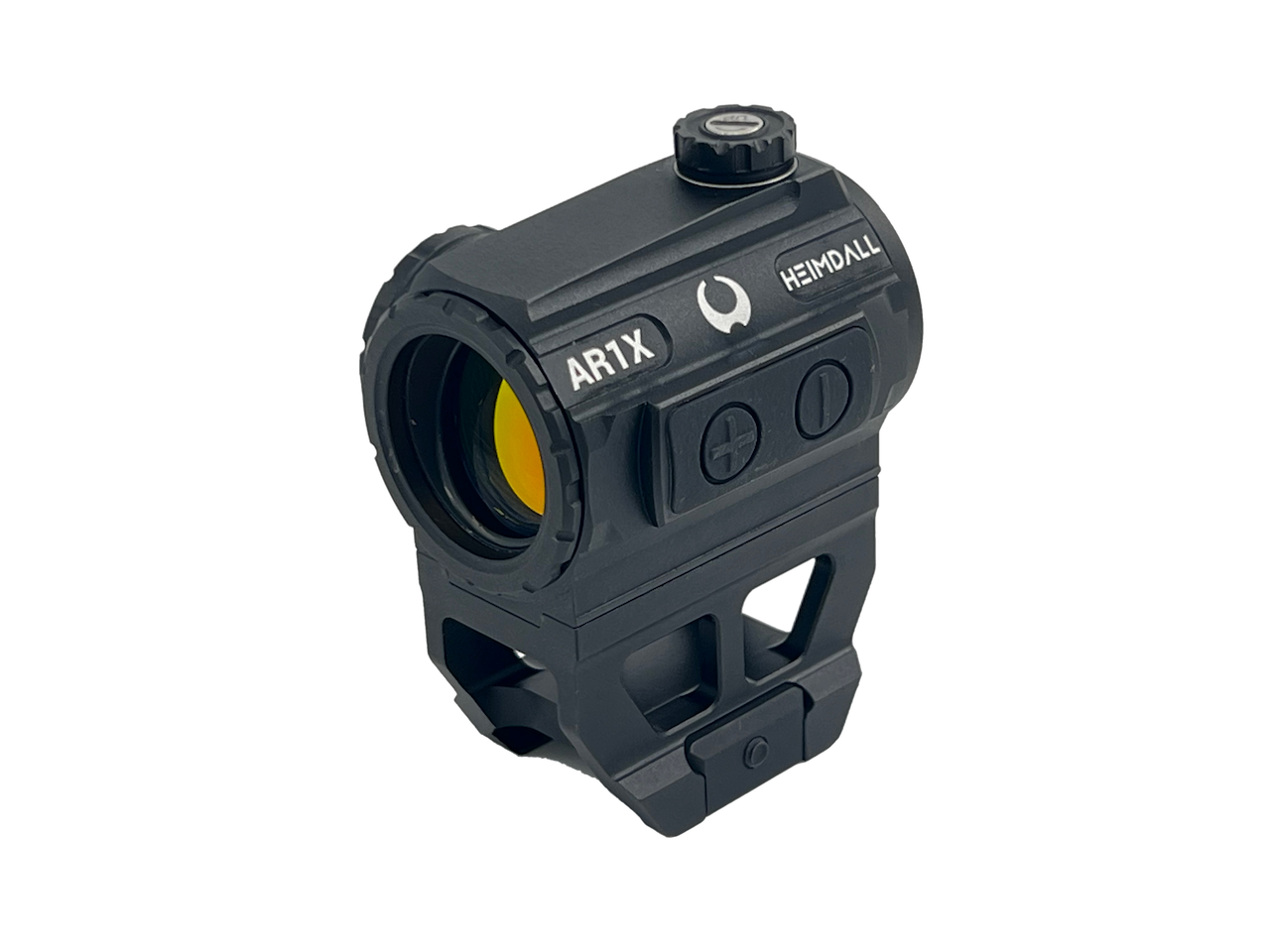

Compact and robust red dot sight
A red dot sight with high-quality optics and advanced lens coatings in an extremely compact design and low weight. The focus is on durability and excellent handling for precision and speed. This makes it the ideal choice for AR platforms, shotguns and other applications.
✓ Red dot sight with 1x magnification
✓ UHP LED illumination
✓ Motion sensor for automatic switch-off/on
✓ Up to 50,000 h battery life
✓ Picatinny mount included
A robust and reliable companion for every application
When you buy a Heimdall AR1X device, you are choosing outstanding performance. However, should you ever need help, Heimdall's technical service will provide you with fast, reliable and uncomplicated support.
Technical data:
| Model | Heimdall AR1X |
| Interface | Picatinny / Aimpoint |
| Magnification | 1x |

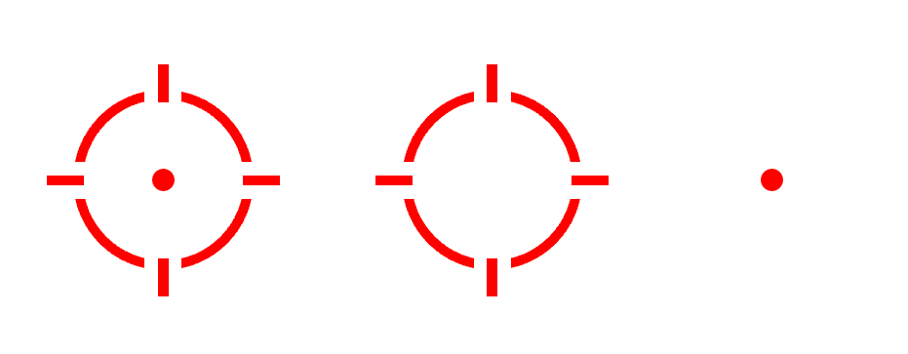

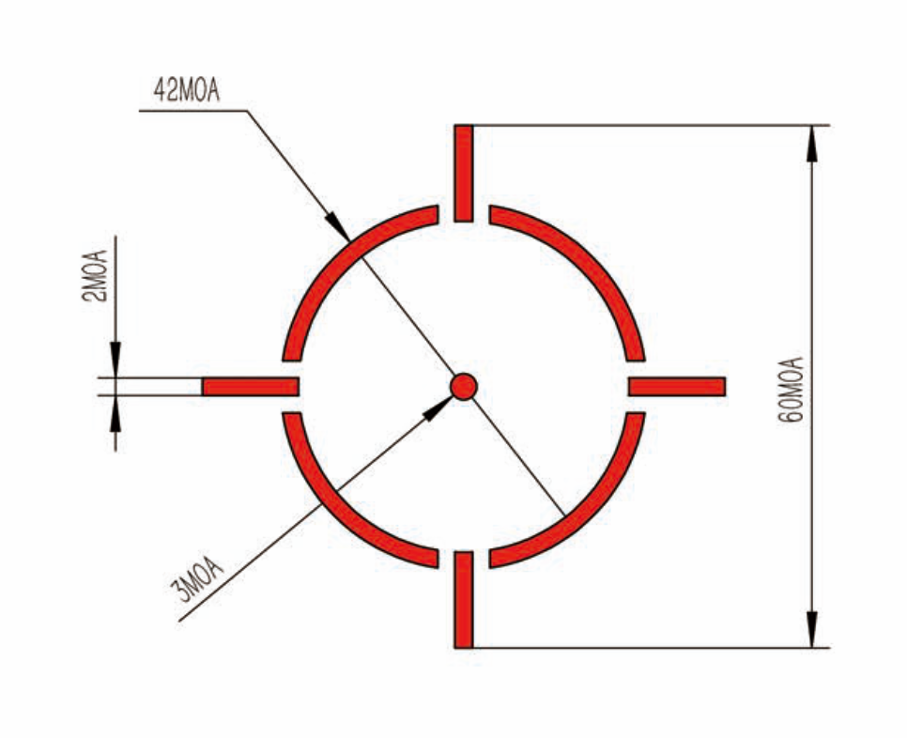

| Illuminated dot / reticle | 2 MOA |
| Motion sensor | yes |
| Illumination | UHP LED |
| Objective lens | 23 mm |
| interpupillary distance | unlimited |
| Exit pupil | - |
| field of view | - |
| parallax | <= 2 MOA |
| Optical axis height | 40 mm |
| Setting value | 1 MOA |
| Height adjustment range | 100 MOA |
| Adjustment range side | 100 MOA |
| battery | CR2032 |
| Battery life | 50000 h |
| Illumination control | 8 day / 2 night vision |
| Housing material | CNC aluminum |
| Surface finish | Anodized |
| Dimensions (LxWxH) | 52x43x69 mm |
| weight | 135 g |
| Operating temperature | -20 to +50 °C |
| Recoil resistance | 1200 G |
| Watertightness | IP 67 |
Scope of delivery
- Heimdall AR1X

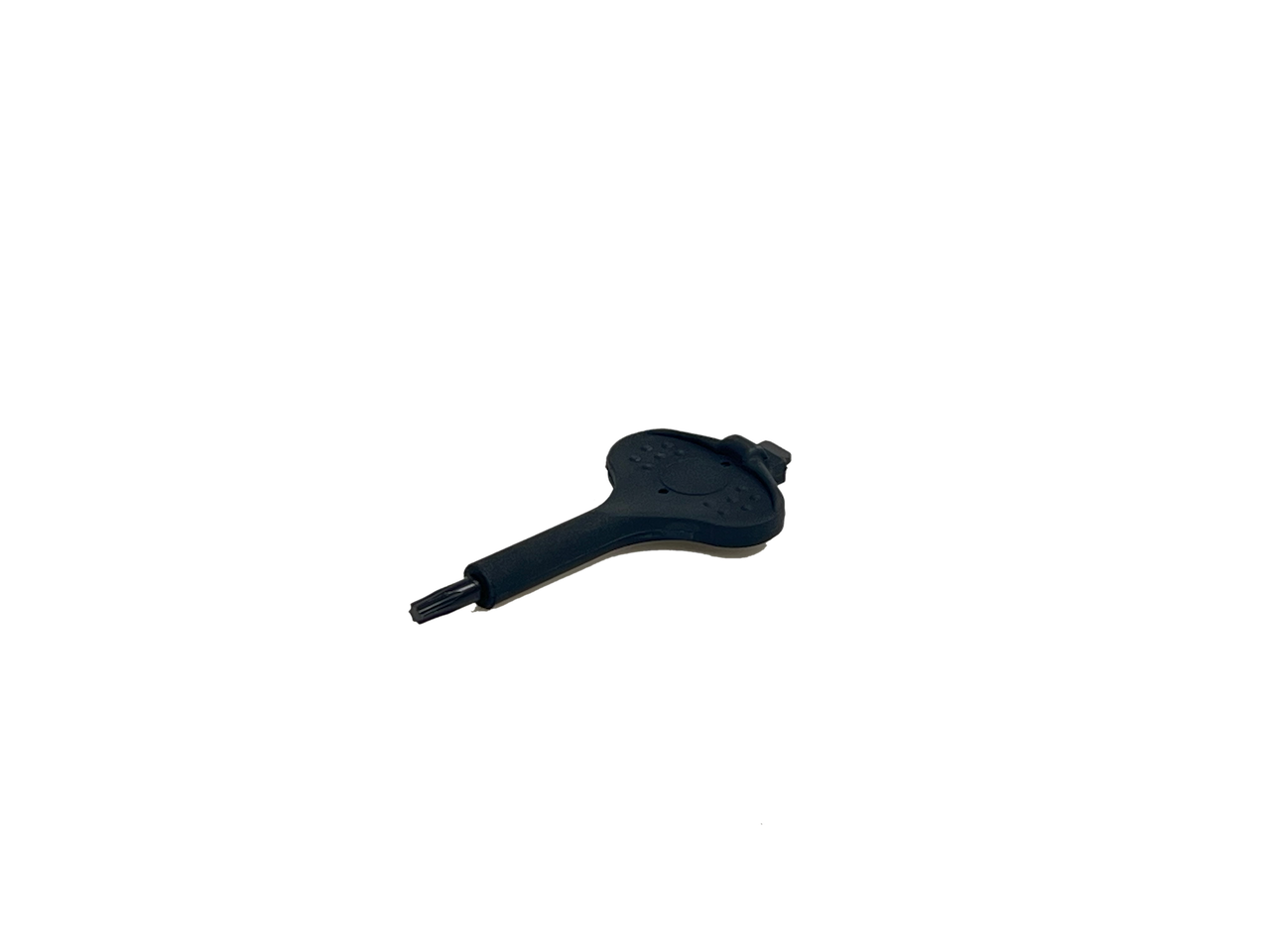

- Setting tool
- Battery CR2032
- Optics cleaning cloth
